Vacuum Wand Tips
베큠완드 팁

Wafer Size:4"~8",12"

0-76mm 웨이퍼 핸들링을 위한 정전기 방지 전도성 PEEK 진공 막대 팁. 3° 오프셋의 좁고 짧은 14 x 19mm 진공 포켓이 특징입니다.
표준 진공 포켓(AP1N)으로 제공됩니다.
모든 버전은 각 웨이퍼 처리 용도에 따라 직선(ST), 위로 10° 굽힘(1U), 아래로 10° 굽힘(1D), 위로 30° 굽힘(3U) 또는 아래로 30° 굽힘(3D)으로 제공됩니다. ISO 3 호환.

Automatic Notch Aligner

Automatic-flat-aligner

Manual-notch-aligner

Manual-flat-aligner

SEMI 스탠다드 웨이퍼 핸들링
Antistatic PEEK Material
Straight or bend
10° BENT DOWN
10° BENT UP
30° BENT DOWN
30° BENT UP
STRAIGHT

Portable Wand

Vacuum Wand Set

Vacuum tips

Vacuum Handles

Portable Wand

Vacuum Wand Set

Vacuum tips

Vacuum Handles

Wafer 3-point mechanical gripper

Wafer Edge Pick

일반 용도:베큠 완드는 웨이퍼를 한 위치에서 다른 위치로 픽업하고 운반하는 데 사용됩니다(without adding particles)

Aluminum Process Cassettes

Aluminum Box Cassettes

Stainless Steel Process Cassettes

Process Cassettes 300mm

분류: 수동 웨이퍼 분류 애플리케이션의 경우 베큠완드를 사용하면 작업자가 상위 로트 내에서 웨이퍼를 안전하고 정확하게
이동할 수 있습니다.
또한 필요에 따라 로트를 결합하고, 테스트 웨이퍼를 추가하고, 손상된 웨이퍼를 교체하는 데에도 사용할 수 있습니다.

Mask Pick - Side Grip

Mask Pick - Horizontal Grip

Inspection - 작업자는 베큠완드를 사용하여 상위 로트에서 웨이퍼를 꺼내고 특수 조명 아래에서 검사하여 결함을 찾을 수 있습니다.
이를 통해 프로세스가 성공적으로 이루어졌고 웨이퍼가 필수 사양을 충족하는지 확인됩니다.

Manual Reticle SMIF Pod Opener, RSP150

Manual FOUP Opener, 300 mm

Rescue: 베큠완드는 자동화 성능이 저하될 때 카세트, 포드 및 프로세스 도구에서 장애가 발생한 물질(stranded substrates)을 제거하는 데 사용할 수 있습니다.

Automatic Wafer Presenter

Manual Five-Wafer Lift Presenter

Manual Single Wafer Presenter

21-manual-wafer-escalators


WHS-V1-AP1N1D	WHS-V1-AP1N1U	WHS-V1-AP1N3D	WHS-V1-AP1N3U	WHS-V1-AP1NST
10° bent down	10° bent up	30° bent down	30° bent up	Straight


WHS-V1-AP3C1D	WHS-V1-AP3C1U	WHS-V1-AP3C3D	WHS-V1-AP3C3U	WHS-V1-AP3CST
10° bent down	10° bent up	30° bent down	30° bent up	Straight, Thin Wafer


WHS-V1-AP4BST	WHS-V1-AP4N1D	WHS-V1-AP4N1U	WHS-V1-AP4N3D	WHS-V1-AP4N3U
Straight	10° bent down	10° bent up	30° bent down	30° bent up


WHS-V1-AP6NST	WHS-V1-AP5NST	WHS-V1-AP5N1D	WHS-V1-AP5N3U
Straight	Straight	10° bent down	30° bent up



WHS-V1-PI1NST	WHS-V1-PI2CST	WHS-V1-PI3NST	WHS-V1-PI4NST
polyimide 50-76 mm nife-edge	polyimide 50-100 mm	Spatula knife-edge for platens/hot plates 150mm	Spatula Knife-Edge for Platens/Hot Plates 200mm

베큠완드 팁 분류
품 명	스 펙	납 기
WHS-V1-AP1N1D	PEEK Vacuum Tip, Antistatic, 50-100mm, Bent 10° Down	2-3 weeks
WHS-V1-AP1N1U	PEEK Vacuum Tip, Antistatic, 50-100mm, Bent 10° Up	2-3 weeks
WHS-V1-AP1N3D	PEEK Vacuum Tip, Antistatic, 50-100mm, Bent 30° Down	2-3 weeks
WHS-V1-AP1N3U	PEEK Vacuum Tip, Antistatic, 50-100mm, Bent 30° Up	2-3 weeks
WHS-V1-AP1NST	PEEK Vacuum Tip, Antistatic, 50-100mm, Straight	2 weeks
WHS-V1-AP2C1D	PEEK Vacuum Tip, Antistatic, 50-100mm, Compound/Thin Bent 10° Down	2-3 weeks
WHS-V1-AP2C1U	PEEK Vacuum Tip, Antistatic, 50-100mm, Compound/Thin Bent 10° Up	2-3 weeks
WHS-V1-AP2C3D	PEEK Vacuum Tip, Antistatic, 50-100mm, Compound/Thin Bent 30° Down	2-3 weeks
WHS-V1-AP2C3U	PEEK Vacuum Tip, Antistatic, 50-100mm, Compound/Thin Bent 30° Up	2-3 weeks
WHS-V1-AP2CST	PEEK Vacuum Tip, Antim,static, 50-100mm, Compound/Thin Straight	2 weeks
WHS-V1-AP2N1D	PEEK Vacuum Tip, Antistatic, 76-150mm, Bent 10° Down	2-3 weeks
WHS-V1-AP2N1U	PEEK Vacuum Tip, Antistatic, 76-150mm, Bent 10° Up	2-3 weeks
WHS-V1-AP2N3D	PEEK Vacuum Tip, Antistatic, 76-150mm, Bent 30° Down	2-3 weeks
WHS-V1-AP2N3U	PEEK Vacuum Tip, Antistatic, 76-150mm, Bent 30° Up	2-3 weeks
WHS-V1-AP2NST	PEEK Vacuum Tip, Antistatic, 76-150mm, Straight	2 weeks
WHS-V1-AP2U1D	UHMW Vacuum Tip, 76-150mm, Ultraclean Touchpad, Bent 10° Down	2-3 weeks
WHS-V1-AP2U1U	UHMW Vacuum Tip, 76-150mm, Ultraclean Touchpad, Bent 10° Up	2-3 weeks
WHS-V1-AP2U3D	UHMW Vacuum Tip, 76-150mm, Ultraclean Touchpad, Bent 30° Down	2-3 weeks
WHS-V1-AP2U3U	UHMW Vacuum Tip, 76-150mm, Ultraclean Touchpad, Bent 30° Up	2-3 weeks
WHS-V1-AP2UST	UHMW Vacuum Tip, 76-150mm, Ultraclean Touchpad, Straight	2 weeks

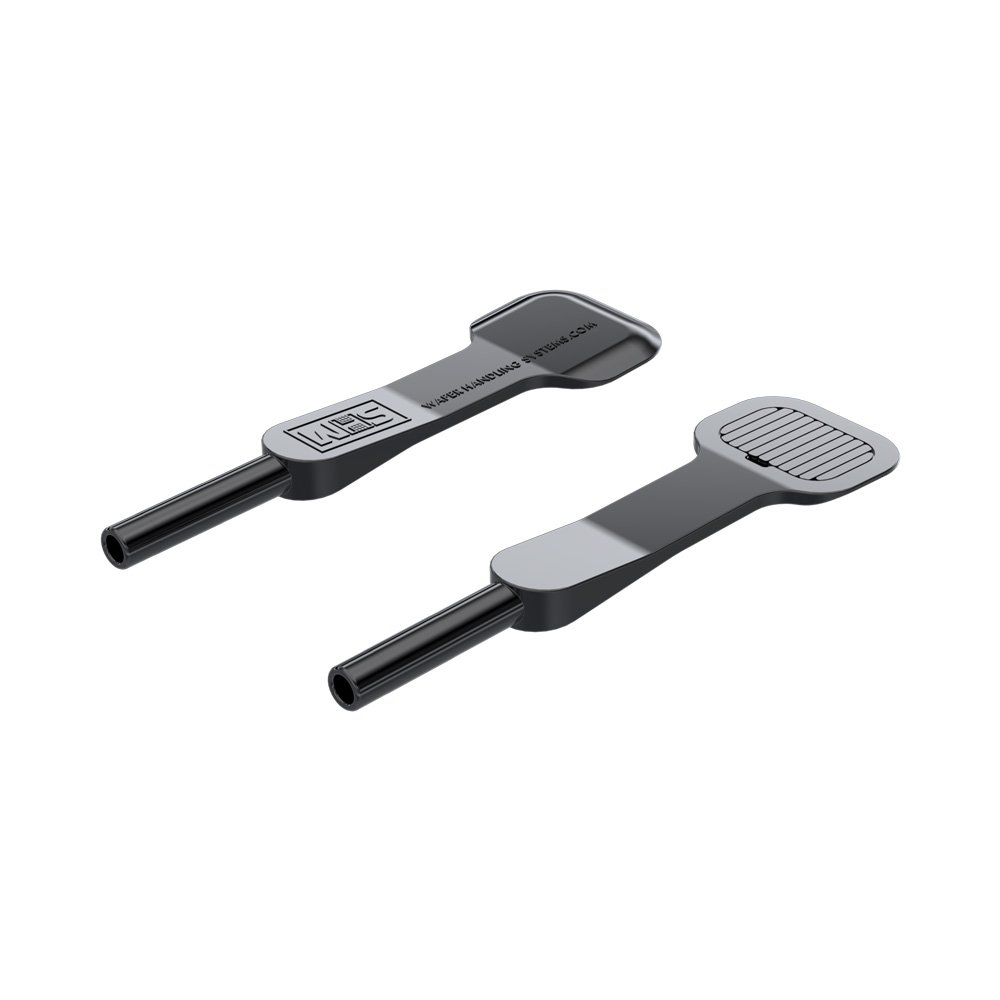

WHS-V1-AP3C1D	PEEK Vacuum Tip, Antistatic, 76-150mm, Compound/Thin Bent 10° Down	2-3 weeks
WHS-V1-AP3C1U	PEEK Vacuum Tip, Antistatic, 76-150mm, Compound/Thin Bent 10° Up	2-3 weeks
WHS-V1-AP3C3D	PEEK Vacuum Tip, Antistatic, 76-150mm, Compound/Thin Bent 30° Down	2-3 weeks
WHS-V1-AP3C3U	PEEK Vacuum Tip, Antistatic, 76-150mm, Compound/Thin Bent 30° Up	2-3 weeks
WHS-V1-AP3CST	PEEK Vacuum Tip, Antistatic, 76-150mm, Compound/Thin Straight	2 weeks
WHS-V1-AP3N1D	PEEK Vacuum Tip, Antistatic, 76-150mm, Bent 10° Down	2-3 weeks
WHS-V1-AP3N1U	PEEK Vacuum Tip, Antistatic, 76-150mm, Bent 10° Up	2-3 weeks
WHS-V1-AP3N3D	PEEK Vacuum Tip, Antistatic, 76-150mm, Bent 30° Down	2-3 weeks
WHS-V1-AP3N3U	PEEK Vacuum Tip, Antistatic, 76-150mm, Bent 30° Up	2-3 weeks
WHS-V1-AP3NST	PEEK Vacuum Tip, Antistatic, 76-150mm, Straight	2 weeks
WHS-V1-AP4BST	PEEK Vacuum Tip, Antistatic, 100-200mm, Straight, Insertion Prevention Bump	2 weeks

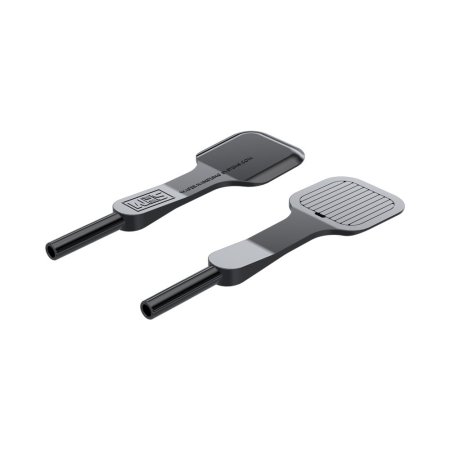

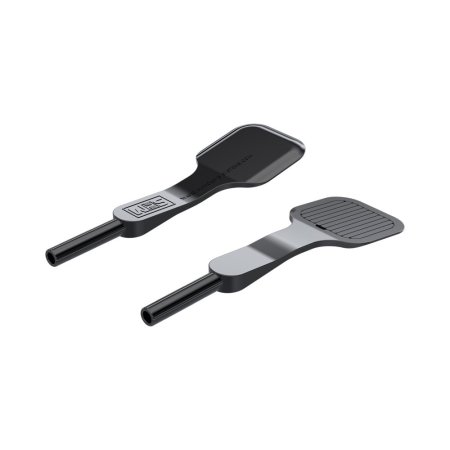

WHS-V1-AP4C1D	PEEK Vacuum Tip, Antistatic, 100-200mm, Compound/Thin, Bent 10° Down	2-3 weeks
WHS-V1-AP4C1U	PEEK Vacuum Tip, Antistatic, 100-200mm, Compound/Thin, Bent 10° Up	2-3 weeks
WHS-V1-AP4C3D	PEEK Vacuum Tip, Antistatic, 100-200mm, Compound/Thin, Bent 30° Down	2-3 weeks
WHS-V1-AP4C3U	PEEK Vacuum Tip, Antistatic, 100-200mm, Compound/Thin, Bent 30° Up	2-3 weeks
WHS-V1-AP4CST	PEEK Vacuum Tip, Antistatic, 100-200mm, Compound/Thin, Straight	2 weeks
WHS-V1-AP4N1D	PEEK Vacuum Tip, Antistatic, 100-200mm, Bent 10° Down	2-3 weeks
WHS-V1-AP4N1U	PEEK Vacuum Tip, Antistatic, 100-200mm, Bent 10° Up	2-3 weeks
WHS-V1-AP4N3D	PEEK Vacuum Tip, Antistatic, 100-200mm, Bent 30° Down	2-3 weeks
WHS-V1-AP4N3U	PEEK Vacuum Tip, Antistatic, 100-200mm, Bent 30° Up	2-3 weeks
WHS-V1-AP4NST	PEEK Vacuum Tip, Antistatic, 100-200mm, Straight	2 weeks
WHS-V1-AP4U1D	UHMW Vacuum Tip, 100-200mm, Ultraclean Touchpad, Bent 10° Down	2-3 weeks
WHS-V1-AP4U1U	UHMW Vacuum Tip, 100-200mm, Ultraclean Touchpad, Bent 10° Up	2-3 weeks
WHS-V1-AP4U3D	UHMW Vacuum Tip, 100-200mm, Ultraclean Touchpad, Bent 30° Down	2-3 weeks
WHS-V1-AP4U3U	UHMW Vacuum Tip, 100-200mm, Ultraclean Touchpad, Bent 30° Up	2-3 weeks
WHS-V1-AP4UST	UHMW Vacuum Tip, 100-200mm, Ultraclean Touchpad, Straight	2 weeks
WHS-V1-AP5N1D	PEEK Vacuum Tip, Antistatic, 150-200mm Heavy, Bent 10° Down	2-3 weeks
WHS-V1-AP5N1U	PEEK Vacuum Tip, Antistatic, 150-200mm Heavy, Bent 10° Up	2-3 weeks
WHS-V1-AP5N3D	PEEK Vacuum Tip, Antistatic, 150-200mm Heavy, Bent 30° Down	2-3 weeks
WHS-V1-AP5N3U	PEEK Vacuum Tip, Antistatic, 150-200mm Heavy, Bent 30° Up	2-3 weeks
WHS-V1-AP5NST	PEEK Vacuum Tip, Antistatic, 150-200mm Heavy, Straight	2 weeks
WHS-V1-AP6N1D	PEEK Vacuum Tip, Antistatic, 300mm, Bent 10° Down	2-3 weeks
WHS-V1-AP6N1U	PEEK Vacuum Tip, Antistatic, 300mm, Bent 10° Up	2-3 weeks
WHS-V1-AP6N2D	PEEK Vacuum Tip, Antistatic, 300mm, Bent 20° Down	2-3 weeks
WHS-V1-AP6N2U	PEEK Vacuum Tip, Antistatic, 300mm, Bent 20° Up	2-3 weeks
WHS-V1-AP6N3D	PEEK Vacuum Tip, Antistatic, 300mm, Bent 30° Down	2-3 weeks
WHS-V1-AP6N3U	PEEK Vacuum Tip, Antistatic, 300mm, Bent 30° Up	2-3 weeks
WHS-V1-AP6NST	PEEK Vacuum Tip, Antistatic, 300mm, Straight	2 weeks
WHS-V1-AP6UST	UHMW Vacuum Tip, 300mm, Ultraclean Touchpad, Straight	2 weeks
WHS-V1-PI1NST	Polyimide Vacuum Tip, High Temp, Knife Edge, w/Adapter, 50-76mm	2 weeks
WHS-V1-PI2CST	Polyimide Vacuum Tip, High Temp, Knife Edge, w/Adapter, 50-100mm, Compound	2 weeks
WHS-V1-PI2NST	Polyimide Vacuum Tip, High Temp, Knife Edge, w/Adapter, 50-100mm	2 weeks
WHS-V1-PI3CST	Polyimide Vacuum Tip, High Temp, Knife Edge, w/Adapter, 150mm, Compound	2 weeks
WHS-V1-PI3NST	Polyimide Vacuum Tip, High Temp, Knife Edge, w/Adapter, 150mm	2 weeks
WHS-V1-PI4NST	Polyimide Vacuum Tip, High Temp, Knife Edge, w/Adapter, 200mm	2 weeks
